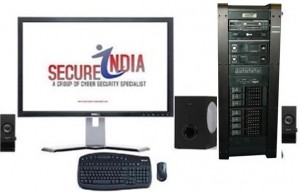

This Forensic Server Optimized with Raid edition is a high speed dual CPU system featuring the latest in Intel based CPU Technology. The Forensic Server “Optimized with Raid” was designed to bring the very best in processing power to today’s forensic investigators; Combining dual high-speed multi-core processors, high speed Error Checking Memory, and a high performance SSD to give you the best performance available. Our all Systems are user friendly, and support all Windows based forensic platforms. The addition of a Raid Array to the system gives you a perfect package to process and store data all on one machine. Included in each system is the Data Analysis Reporting Tool kit software for complete cell phone analysis capability without any additional equipment required.
Our all forensic systems come with two forensic bridges T35689iu and T3iu to provide the more options to forensic examiner to connect the evidence. T3iu is the latest unit of Tableau which provides higher forensic imaging speed. Our all systems are ideal to do forensic analysis of any type of evidence.
Why E-Discovery consultants are fighting with their old uncomfortable systems and IT devices? Our latest, High End, customized and comfortable systems are ideal for E-Discovery consultants to make E-Discovery process easy and enrapture.
Specifications:
- Two High Speed Intel ® Xeon E5-2630v2 Six Core Processor Clocked at 2.3 Ghz (2.8 Ghz Turbo)
- Cooled by a High Performance Heat Sink to give you stable high-speed performance
- 32 GB of High Speed, Error Checking DDR3 1600 Quad Channel Memory
- An NVidia GeForce GTX 650 with multi-monitor support to ensure a silky smooth experience whether you are processing cases, writing reports, or viewing evidence
- A ultra-fast 256 GB SATA 6 Gbp/s SSD OS Drive to give you lightning fast access to your EDAS FOX System
- A High Capacity, High Speed 2 TB 7200 RPM 6 Gbp/s Hard Disk Data Drive to store files.
- Dual 10/100/100 Mbps Intel Server Class LAN Ports
- High Speed USB 3.0 for up to 10X Faster data transfers than USB 2.0
- *NEW* 3x Hot Plug SATA Tray-less Bays, giving you access to easy to use, high speed hard drive bays for extra storage.
- An Integrated Write-Blocked Multi-Card Reader to ensure forensically sound access to all types of media cards.
- An integrated Write-Blocked Forensic Bridge, With USB 3.0, SATA, IDE, SAS, and FireWire Connections.
- A highly efficient 1300 Watt 80 Plus Gold Certified Fully Modular Power Supply to ensure stability, and high power capacity for all your needs.
- 22 Inch LED Monitor
- Wireless Keyboard / Mouse Combo
Tech Specs
SATA Imaging BayTableau T3iu Forensic SATA Imaging/Cooling Bay
| Supported CPU | |
| CPU Socket Type | LGA 2011 |
| CPU Type | Dual Intel Xeon E5 Processors |
| CPU | |
| Processor Number | E5-2630v2 |
| Number of CPU Cores | 6 |
| Number of CPU Threads | 12 |
| CPU Speed (Ghz) | 2.3 GHz |
| Turbo Speed (Ghz) | 2.8 GHz |
| CPU Cache | 15 MB |
| Lithography | 32nm |
| Heatsink | High Performance Air Cooled Socket 2011 Solution |
| Chipsets | |
| North Bridge | Intel C602 |
| Memory | |
| Number of Memory Slots | 8 x 240 Pin |
| Memory Speed | DDR3 1600+ |
| Memory Included | 32GB (8x 4GB) |
| Maximum Memory | 64GB |
| Channel Supported | Quad Channel |
| Expansion Slots | |
| PCI Express x16 | 7 |
| PCI Express x8 | None |
| PCI Express x4 | None |
| PCI Express x1 | None |
| Video Card | |
| Chipset Manufacturer | NVIDIA |
| GPU | GeForce GTX 750Ti |
| Memory Size | 2GB GDDR5 |
| Memory Speed | 5400MHz |
| HDMI | 1x HDMI |
| DVI | 1x DVI |
| Storage Devices | |
| SATA 3Gb/s | 8 |
| SATA 6Gb/s | 6 |
| Storage Configuration | |
| OS Drive | 256 GB SATA 6 Gbp/s SSD Drive |
| Temp Drive | 128 GB SATA 6 Gbp/s SSD Drive |
| Data Drive | 2 TB 7200 RPM 6 Gbp/s Hard Disk Drive |
| Onboard Video | |
| Video Chipset | None |
| Onboard Audio | |
| Audio Chipset | Realtek ALC898 |
| Audio Channels | 8 Channels |
| Onboard LAN | |
| LAN Chipset | Intel 82574L |
| Second LAN Chipset | Intel 82574L |
| Max LAN Speed | 10/100/1000Mbps |
| Rear Panel Ports | |
| PS/2 | 1 |
| USB 1.1/2.0 | 6x USB 2.0 |
| USB 3.0 | 2x USB 3.0 |
| 1394a | None |
| 1394b | 2 |
| eSATA | 2x eSATA 3Gb/s |
| S/PDIF Out | 1 |
| Audio Ports | 5 |
| Front I/O Ports | |
| USB 1.1/2.0 | 2x USB 2.0 |
| USB 3.0 | 6x USB 3.0 (2 Top Mounted, 4 Front Mounted) |
| eSATA | 1x eSATA |
| Front Audio | 2x Front Audio (Headphone and Microphone) |
| Front Mounted Bays | |
| Optical Disk Drive | 1x 12xBlu-Ray Burner Drive with Lightscribe |
| SATA Trayless OS Drive Bay | 1x SATA Trayless |
| SATA Trayless Data Drive Bay | 1x SATA Trayless |
| Front I/O Panel | 1x 4 Port USB 3.0 Panel |
| Multi-Card Reader | 1x Write Blocked Multi-Card Reader |
| Forensic Bridge | Tableau T35689iu (USB 3.0, SATA, SAS, IDE, and Firewire 800) |
| SAS/Sata Bay | 3x SATA 3.5″ Trayless Bays |
| Internal I/O Connectors | |
| Onboard USB 1.1/2.0 | 2x USB 2.0 Headers, 2x USB 2.0 Ports |
| Onboard USB 3.0 | 1x USB 3.0 Header, 2x USB 3.0 Ports |
| Onboard 1394 | 2x 1394a Header, 1x 1394b Port |
| Front Audio Header | 1x Front Audio Header |
| Features | |
| On-Board Power Button | Yes |
| On-Board Reset Button | Yes |
| On-Board CMOS Clear | Yes |
| On-Board Diagnostic LED | Yes |
| PCI Express Revision | 3.00 |
| Operating System | |
| Windows 7 | 64-Bit Ultimate |
| Power Supply | |
| Maximum Wattage | 1300 Watts |
| 80 Plus Certification | 80 Plus Gold Certified |
| Modular | Fully Modular Power Supply |
| Software Pre-Installed | |
| Data Analysis Reporting Tool | HTCI DART-Eval |
| Browser | Mozilla Firefox |
| Browser | Google Chrome |
| Browser | Internet Explorer |
| DVD Software | Cyberlink Blu-Ray Software |
| System Dimensions | |
| Width | 9.06 Inches |
| Height | 24.33 Inches |
| Depth | 26.10 Inches |
| Weight | 65+ Pounds |
| Peripherals Included | |
| Monitor | 22 Inch LED Monitor |
| Keyboard / Mouse | Wireless Combo |
| Sim Card Reader | USB Sim Card Reader |
| Tool Kit | Multi-Piece Toolkit to assist in Digital Evidence Gathering |
